ReBeL cobot arm inspects circuit board quality

Precio del hardware:

DOF

6

assembly

upside down

Robot Type

Cobot

Our low-cost complete solution for reliable quality control

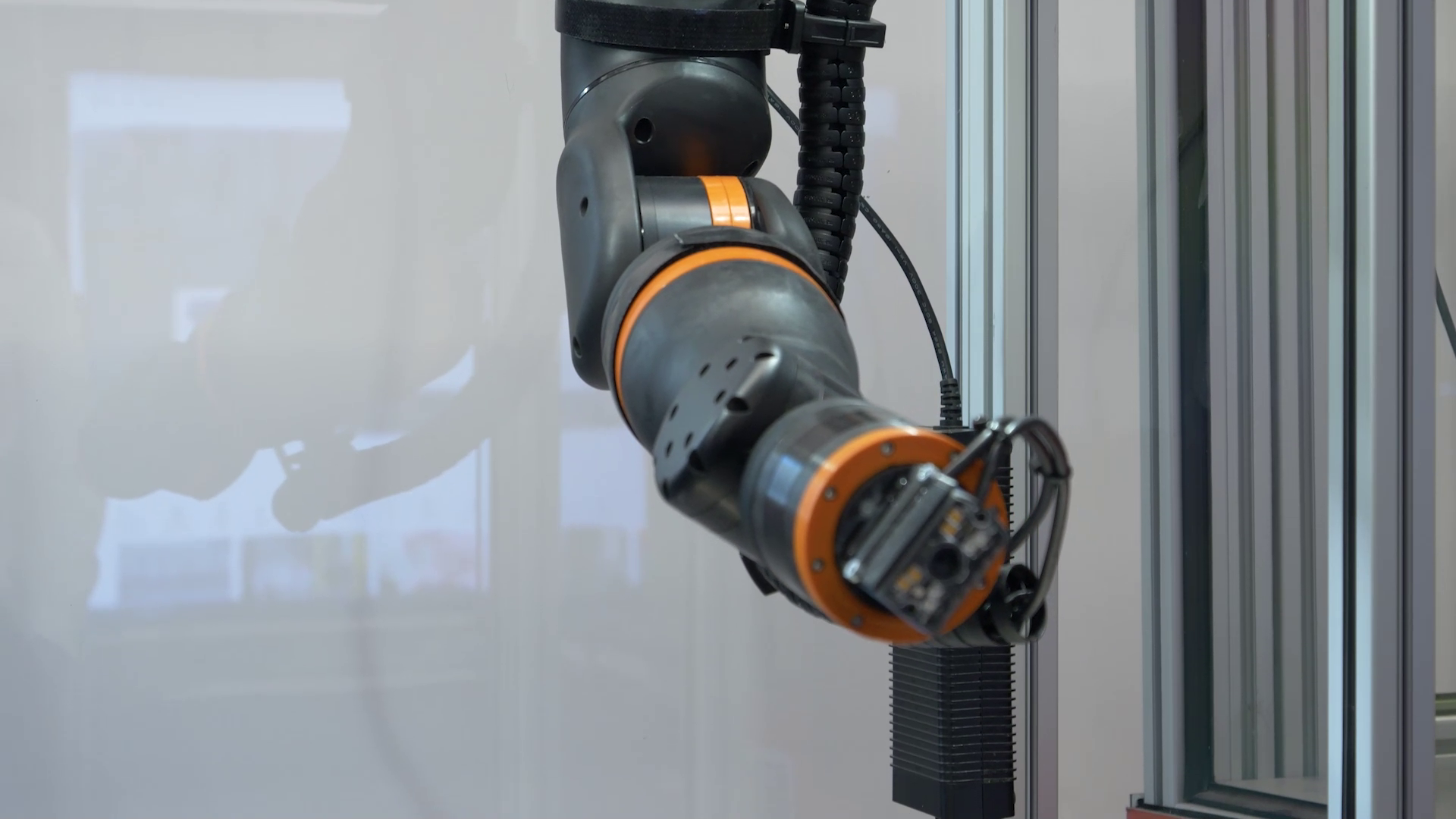

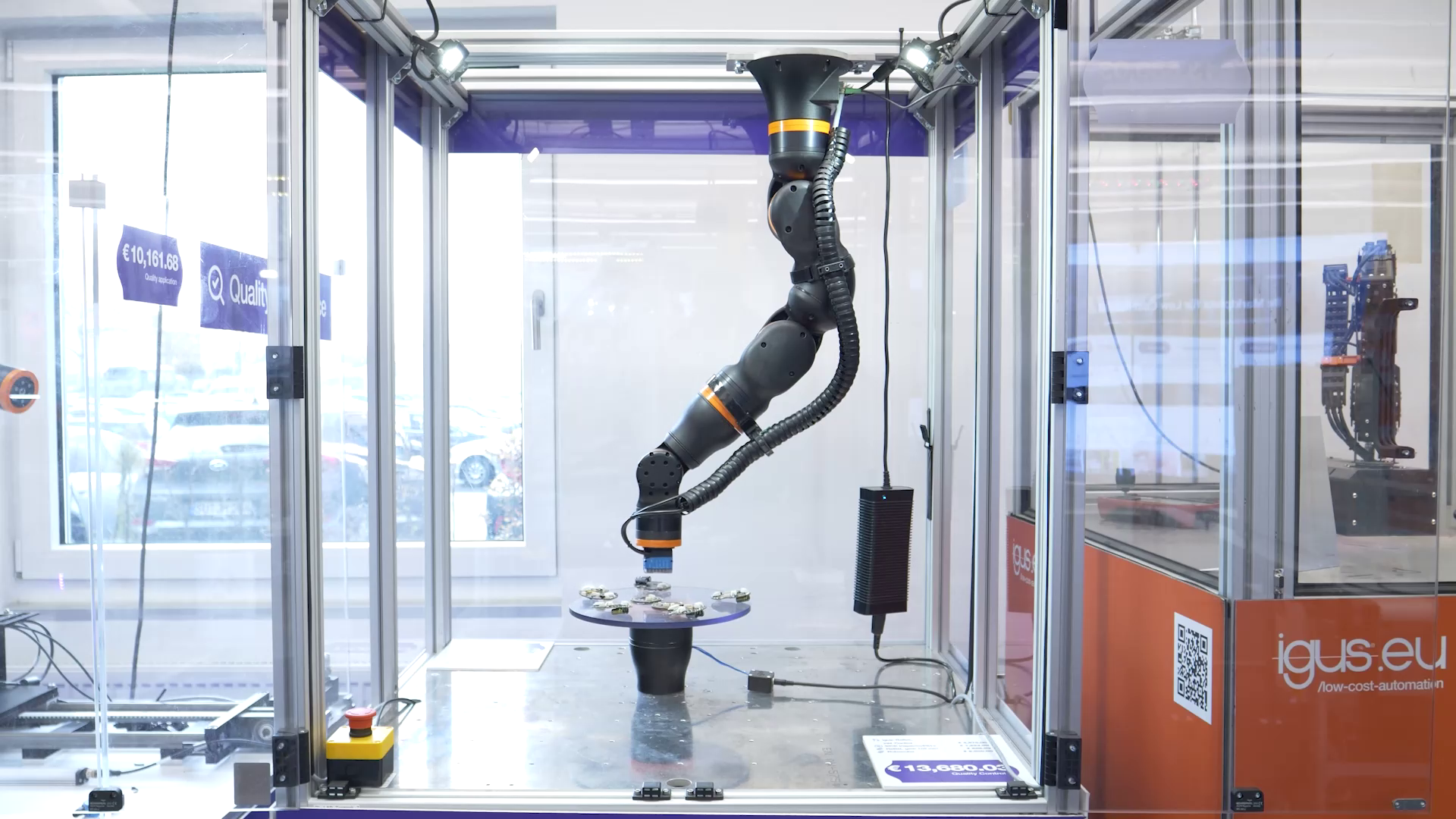

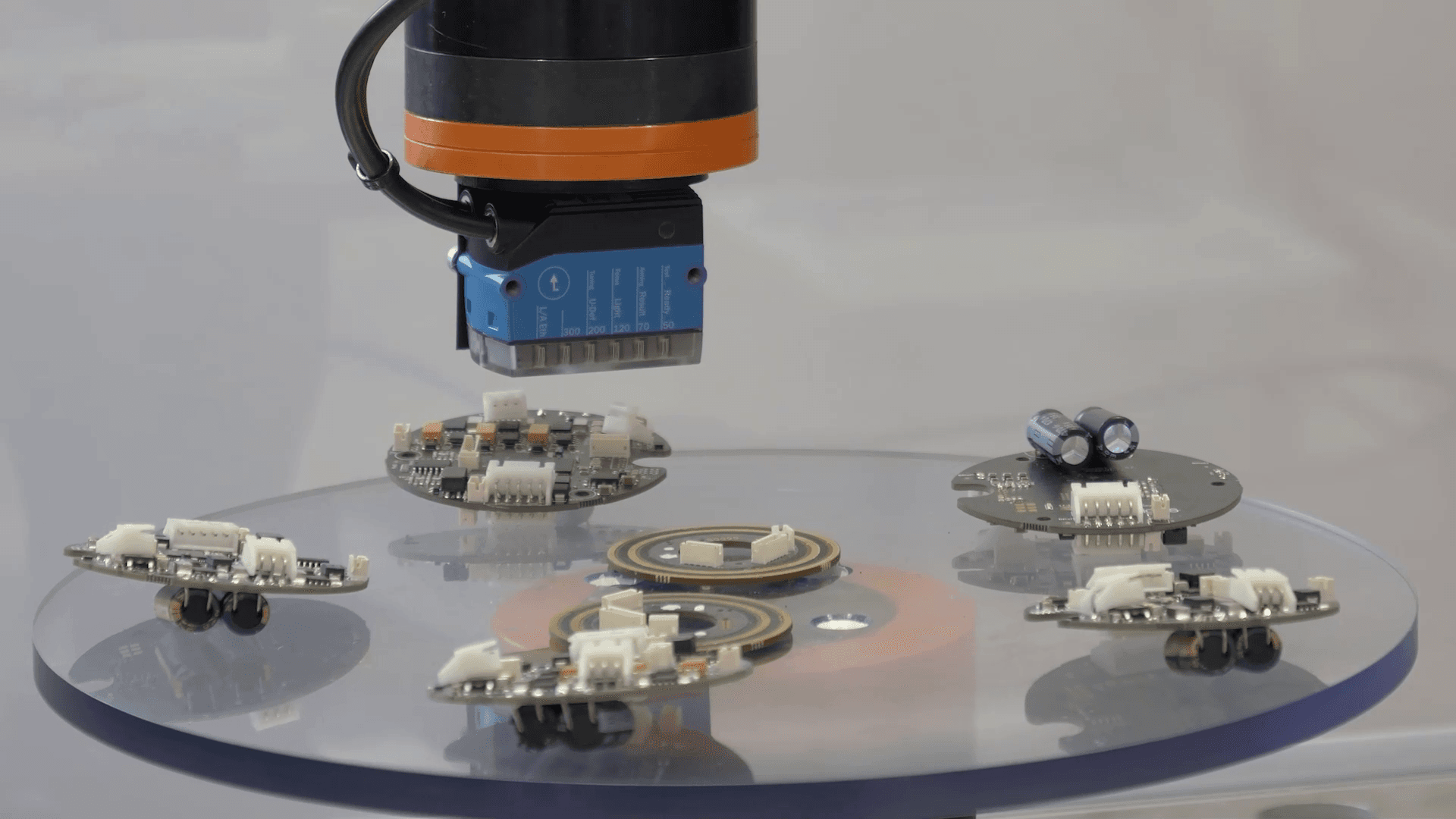

Our Low-Cost Complete Solution for Reliable Quality Control Quality assurance is a crucial aspect for manufacturing and processing companies to minimize costs associated with personnel and error prevention. To meet this need, igus® has developed a cost-effective complete system that enables automated testing of circuit boards. The system consists of an overhead-mounted ReBel® 6-axis robot, which is installed in a Robocube cell. To protect the cables, they were routed through a triflex® energy chain system. The circuit boards are placed on a disc, under which there is a wave gear - the same gear that is also used for the axes of the robot. The quality control is carried out by a camera system from SICK with a sensor for image analysis.

5 componentes
