Large Safety Bundle - 2 Channel

When you want a straightforward system that’s safe, easy-to-use and won’t cost an arm and a leg, a SafetyOne FS1A safety controller is the answer! Unlike a multiple safety relay system, which requires cumbersome wiring and take up too much space, or safety PLCs that can be costly and difficult to program, our safety controllers make it easy to consolidate safety circuits. At the same time they meet safety requirements, save space with minimal wiring and cost customers less money. SafetyOne can replace up to six safety relay modules with no programming. Easily configure by turning on a dip switch to 1 of 24 pre-defined logic circuits and one module can connect with various IDEC safety and non safety components such as Emergency Stop switches, Interlock Switches, pilot lights, sensors and light curtains. With up to 6 dual channel safety inputs, 4 safety outputs and multiple non safety inputs, monitor, blanking and solenoid drive outputs, SafetyOne can simplify your complete safety and logic circuit. FS1A is UL listed, TUV rated and CE marked, as well as meets IEC 61508 integrity level 3, ISO 13849-1 performance level e and EN954-1 safety category 4.

Key Features

• No programming required

• Set up to 6 dual channel inputs and quad, dual or single channel outputs

• Select safety circuit logic from 24 pre-programmed circuits

• One module can connect with various types of safety inputs such as E-stop switches or light curtains

• Easily monitor logic circuit, I/Os and error codes with I/O LEDs and two 7 Segment LED display

• IEC 61508 integrity level 3, ISO 13849-1 PLe and EN954-1 safety category 4 compliant

• MTTFd (year): 100

HS7A-DMP Non-contact magnetic safety interlock switches perform the same functions as standard mechanical safety interlock switches, but are designed to be used in applications where non contact is desired between the switch and its actuating key. It's also being used where space is at a premium. The slim profile makes it easy to mount in locations out of the way of personnel and machine operation, reducing the possibility of damage or misalignment.

Key Features

• Compact rectangular 25 x 88 x 13 mm

• 1NO+2NC, or 2NO+1NC contacts

• Models with 2m, 5m, and 10 cable length

• Models with LED indicator

• Up to 36 sets can be connected

• IP67 protection

• B10d: 5.0E+07

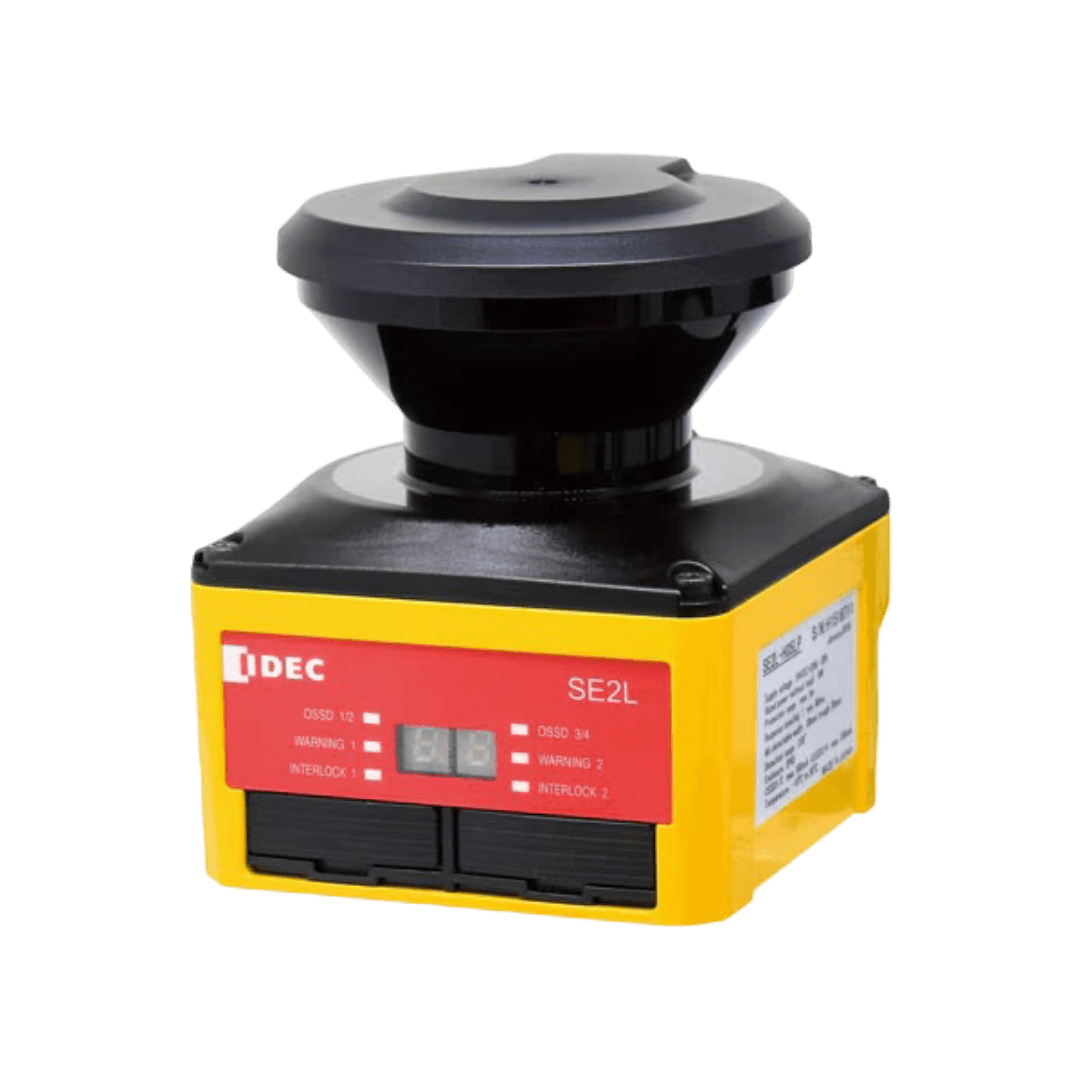

The SE2L Safety Laser Scanner from Apem IDEC sets new standards in industrial safety. With a 270-degree detection angle, a 5-meter protection zone, and a warning zone of up to 30 meters, it provides comprehensive protection for machines and automated systems—even in harsh environments.

Thanks to its Master/Slave functionality, up to four scanners can be connected to cover complex configurations such as 360° protection for AGVs or safeguarding multiple machine areas.

Intelligent Muting Function

The integrated muting function allows specific parts of the protection zone to be temporarily disabled, enabling workpieces to pass through without interrupting operations. An override function ensures that mistakenly stopped processes can be quickly resumed.

Flexible Area Switching

The SE2L features four input channels that enable speed-dependent area switching—ideal for mobile robots such as AGVs and AMRs. This allows the scanner to dynamically adapt to the machine’s movements.

Customizable Protection Patterns and Blanking

With up to 128 configurable protection patterns, the scanner can be tailored to a wide range of applications. Features like the scan-skip function reduce false triggers caused by dust or light reflections. Fixed or floating blanking functions can be configured to permanently or temporarily ignore specific areas or objects—similar to the SE4D light curtain.

Additional Features

• PLd, Safety Category 3, SIL2

• MicroSD slot for data logging

• Ethernet and USB connectivity

• Robust housing with conductive coating against dust and dirt

Key Features

• Accurate and reliable detection

• Fast response time

• Miniature housing design

• Seven optical functions: background suppression, through-beam, polarized retro-reflective, diffuse-reflective, small-beam reflective, convergent reflective and transparent
